- Place of Origin: HE NAN
- Brand Name: YUHONG
- Model Number: 3R1410
Basic Info
Model NO.: 3R1410 Condition: New
Power(Kw): 22 Model Number: 3r2615
Weight: 3700kg Spare Parts: Free
Specification: ISO, CE HS Code: 8501109101
Type: Grinder Mill Motor Type: AC Motor
Capacity(T/H): 3-25t/H Dimension(L*W*H): 3340*2161*3246
Max Feed Size: 30mm Trademark: YUHONG
Product Description
Raymond mill is used for grinding the barite, limestone, kaolin, cement, slag, etc, below scale 9.3 of Mohs hardness and 280-odd sorts of non-inflammable and nonexclusive stuff in the trades of mining, metallurgical industrial, chemical engineering and building material for high fine powder generation and processing. The product size is adjustable in the range of 80-325 (600 the largest) meshes. It is possible to produce 30-80 mesh coarse powder through special device in the machine.

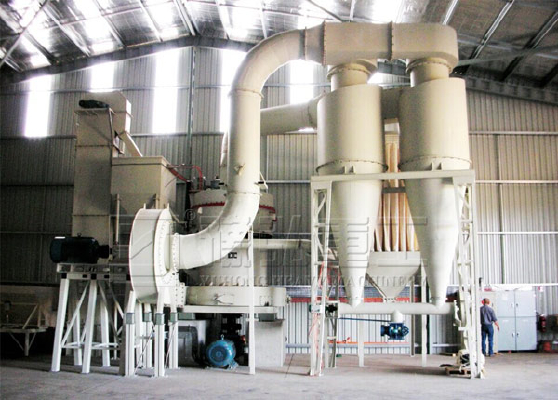

Raymond mill structure is set by the host, analysis machine, plumbing fixtures, blower, finished cyclone, jaw crusher, bucket elevator, electromagnetic vibrating feeder, electric motors and other components. Which Raymond Host from the rack, inlet volute, blade, roller, grinding ring, cover and motor.
Our Service Concept
1. Pre-sale services:
1) Selecting equipment type;
2) Designing and fabricating the products in accordance with the special requirements of the clients;
3) Training technical personnel for our clients;
4) Providing construction and technology consultations or working out proper construction schemes for those new, special or difficult projects.
2. Services provided during the sale:
Respect our clients; Present the clients with ease, relaxation and a surprise; Devote ourselves to improve the total value of our clients.
1) Checking products acceptance ahead of delivery;
2) Introducing the service system to our clients.
3. After-sale services:
Improve the added value of our products, and let the clients free from the using troubles:
1) Assisting the clients preparing for the first construction scheme;
2) Installing and testing the equipments;
3) Training the first-line operators on site;
4) Examining the equipment regularly;
5) Taking the initiatives to eliminate the failure(s) rapidly at site;
6) Distributing the guarantee fittings door-to-door;
7) Providing technical exchanging;
8) Providing maintenance for big items
- Place of Origin: HE NAN
- Brand Name: YUHONG
- Model Number: 3R1410
| Model | 3R1410 | 3R1815 | 3R2615 | 3R2715 | 4R2716 | 3R3016 | 4R3016 | 4R3216 |
| Max feeding size(mm) | 5-8 | 15 | 20 | 20 | 15-25 | 15-25 | 15-25 | 25 |
| Output size(mm) | 0.125-0.044 | 0.125-0.044 | 0.125-0.044 | 0.125-0.044 | 0.125-0.044 | 0.125-0.044 | 0.125-0.044 | 0.125-0.044 |
| Capacity(t/h) | 1-10 | 1-15 | 2-25 | 2-28 | 3-30 | 3-34 | 3-36 | 3-38 |
| Rotating speed(r/m) | 280 | 200 | 170 | 170 | 170 | 178 | 178 | 130 |
| Ring Diameter(mm) | Φ405 | 550 | Φ780 | Φ830 | Φ830 | Φ910 | Φ910 | Φ970 |
| Roller Diameter(mm) | Φ140 | 180 | Φ260 | Φ270 | Φ270 | Φ300 | Φ300 | Φ320 |
| Height(mm) | 100 | 150 | 150 | 150 | 140 | 160 | 160 | 160 |
| Main Motor(kw) | Y160M-6-7.5 | Y180L-8-11 | Y225S-8-18.5 | Y255M-8-22 | Y225M-8-22 | Y225M-8-30 | Y225M-8-30 | Y225S-4-37 |
| Fun Motor(kw) | Y132S-4-5.5 | Y132M-4-7.5 | Y180M-4-15 | Y180M-4-18.5 | Y180M-4-18.5 | Y180L-4-22 | Y180L-4-30 | Y220M-4-30 |
| Analyzer Motor(kw) | Y90L-6-2.2 | Y100L-6-1.5 | Y112M-6-2.2 | Y112M-6-2.2 | Y112M-6-2.2 | Y132S-6-3 | Y132S-6-4 | YCT200-4A-5.5 |
| Dimension(mm) | 3340×2161×3246 | 4200×2800×5000 | 5970×4000×5000 | 5970×4000×5000 | 5970×4000×5000 | 7500×4500×6200 | 7500×4500×6200 | 9900×5800×8500 |
| Weight(kg) | 2500 | 3100 | 3800 | 3850 | 3900 | 7000 | 7500 | 14000 |
